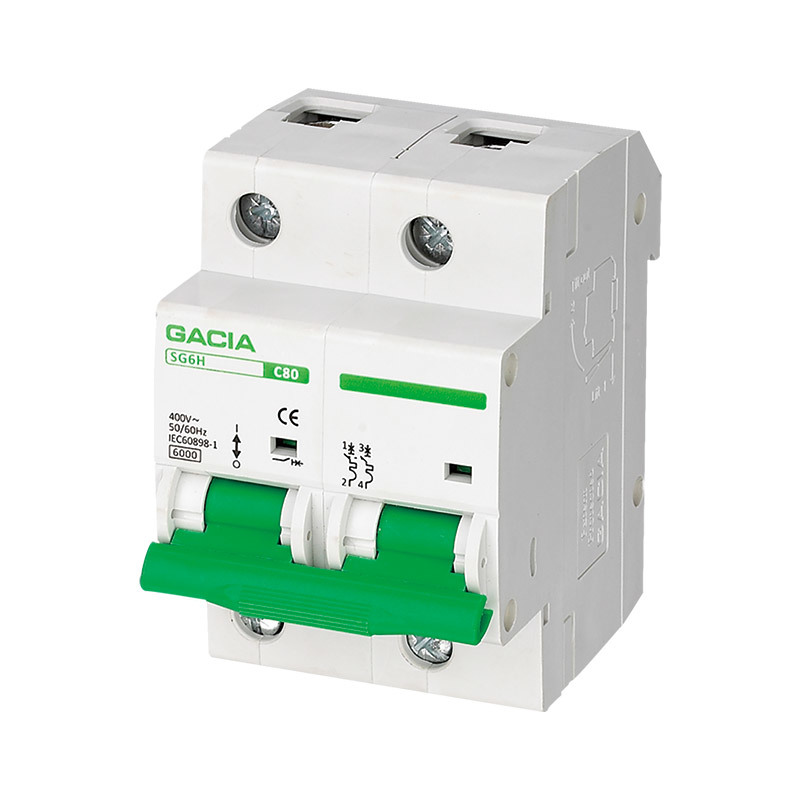

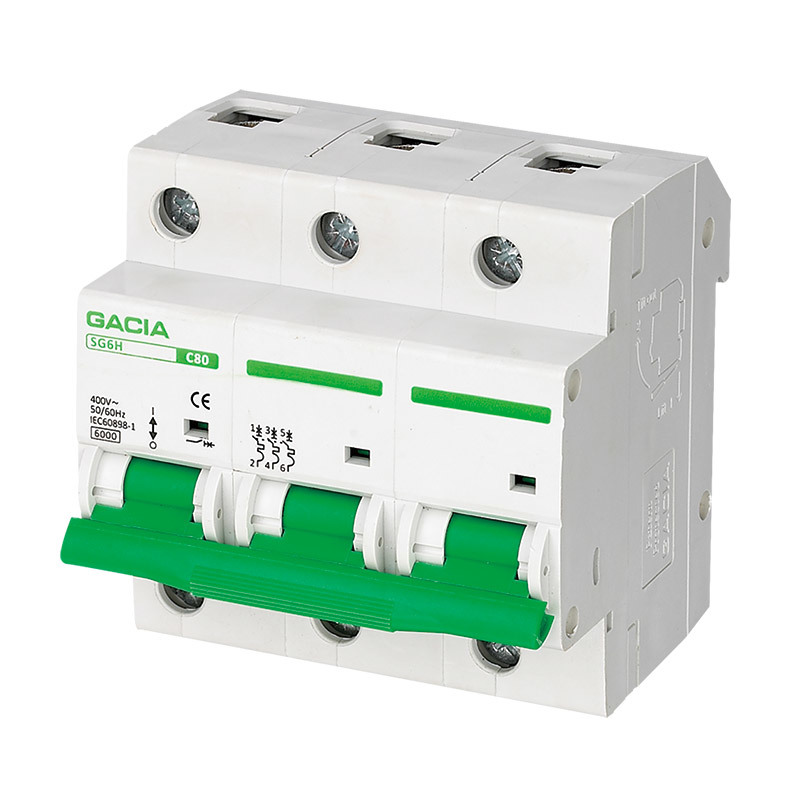

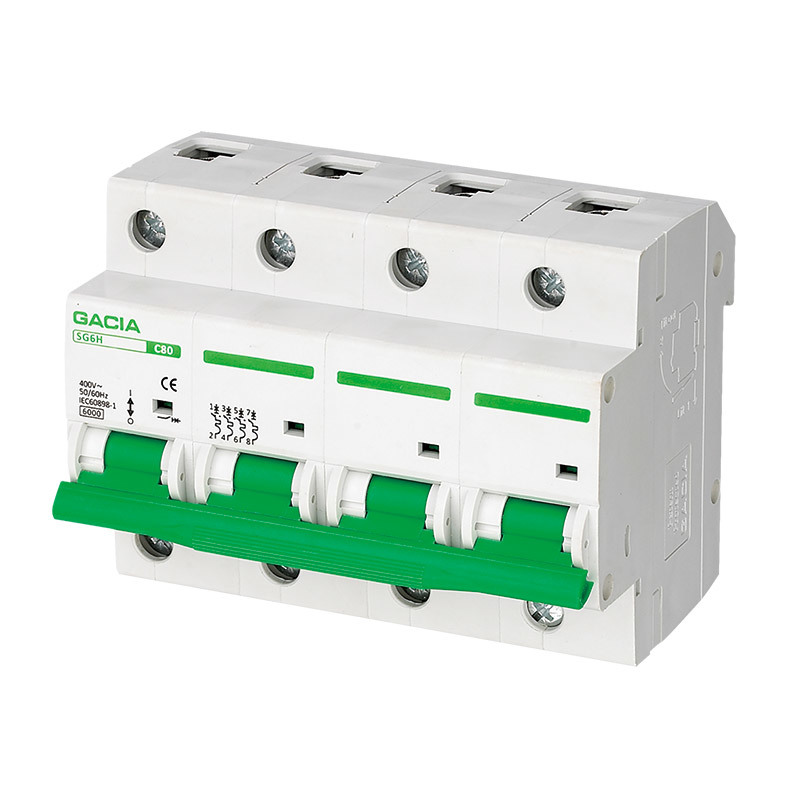

SG6H
Product Poles: 1P，2P，3P，4P
Rated current: 63-125A
Rated frequency: 50/60Hz
Rated short-circuit breaking capacity: 6KA
Rated working voltage: 1P:230/400V,2/3/4P:400V
Instantaneous tripping type:B,C,D
Mechanical: 10000
Electrical: 4000
- 产品描述
- Catalog
- Certificate
- Drawings
-
- Commodity name: SG6H
<strong>Comply with the standard:</strong> IEC/EN 60898-1 IEC/EN 60947-2<br> <strong>Product Poles:</strong> 1P，2P，3P，4P<br> <strong>Rated current:</strong> 63-125A<br> <strong>Rated frequency:</strong> 50/60Hz<br> <strong>Rated short-circuit breaking capacity:</strong> 6KA<br> <strong>Rated working voltage:</strong> 1P:230/400V,2/3/4P:400V<br> <strong>Instantaneous tripping type:</strong>B,C,D<br> <strong>Mechanical:</strong> 10000<br> <strong>Electrical:</strong> 4000
General
SG6H miniature circuit breaker is mainly used for protection against overload and short circuit under AC 50Hz/60Hz, rated voltage 240V/415V and rated current from 63A to 125A.
It also can be used for non-frequent on-and-off switching operation under normal circumstance.
In compliance with IEC/EN60947-2、IEC/EN60898-1
With indicator function in the contact position
Maximum connecting ability of 35/50mm2, connecting
torque 3.5N m, applicable to a variety of installing
equipments, wiring stronger.
Protection class:IP20
-
SG6H File size: 6.3M
-
-
